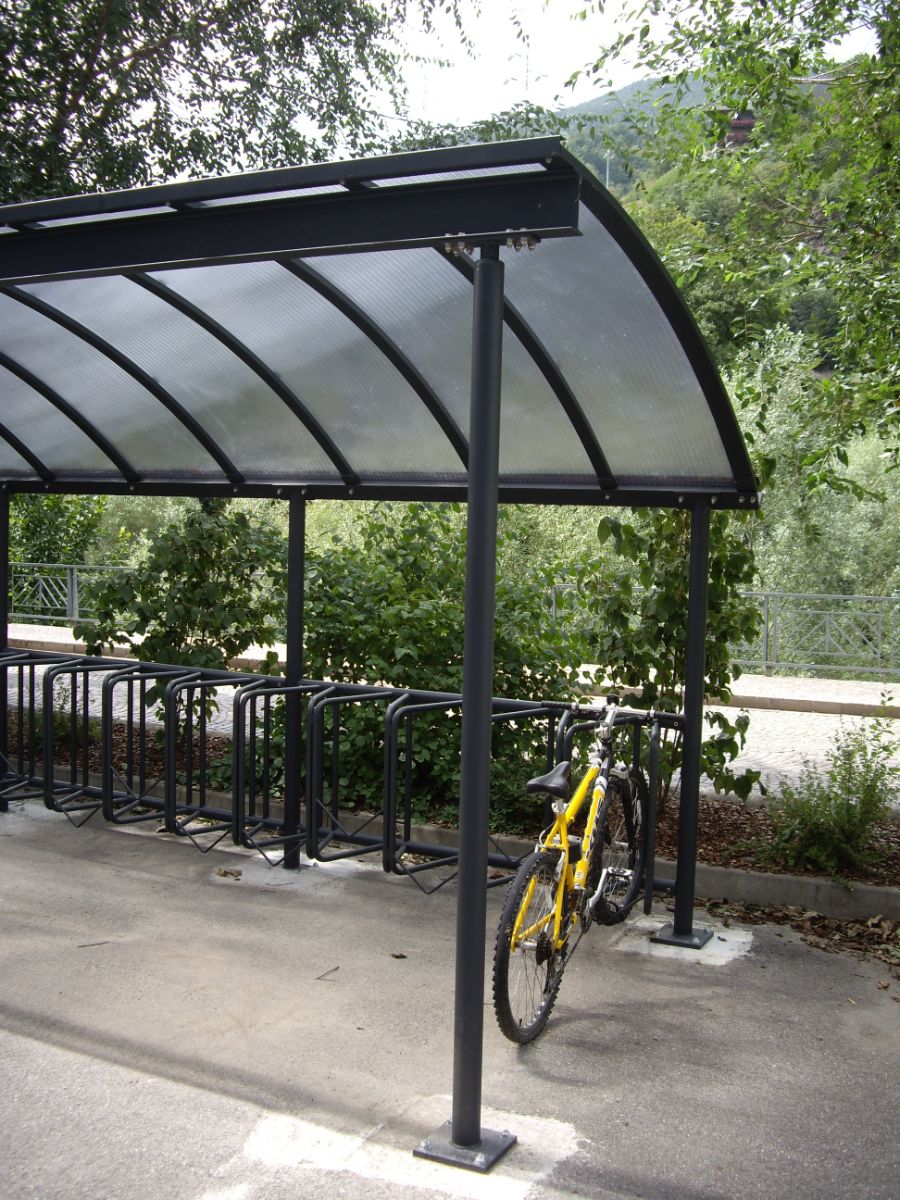

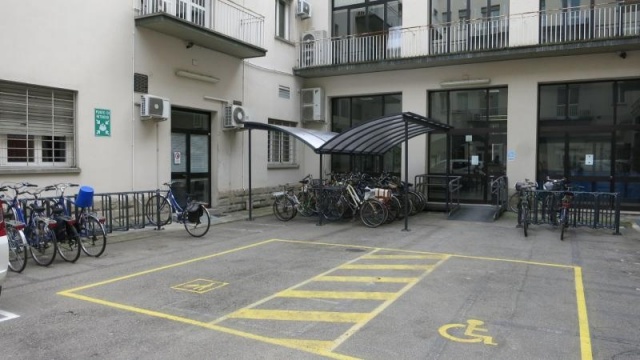

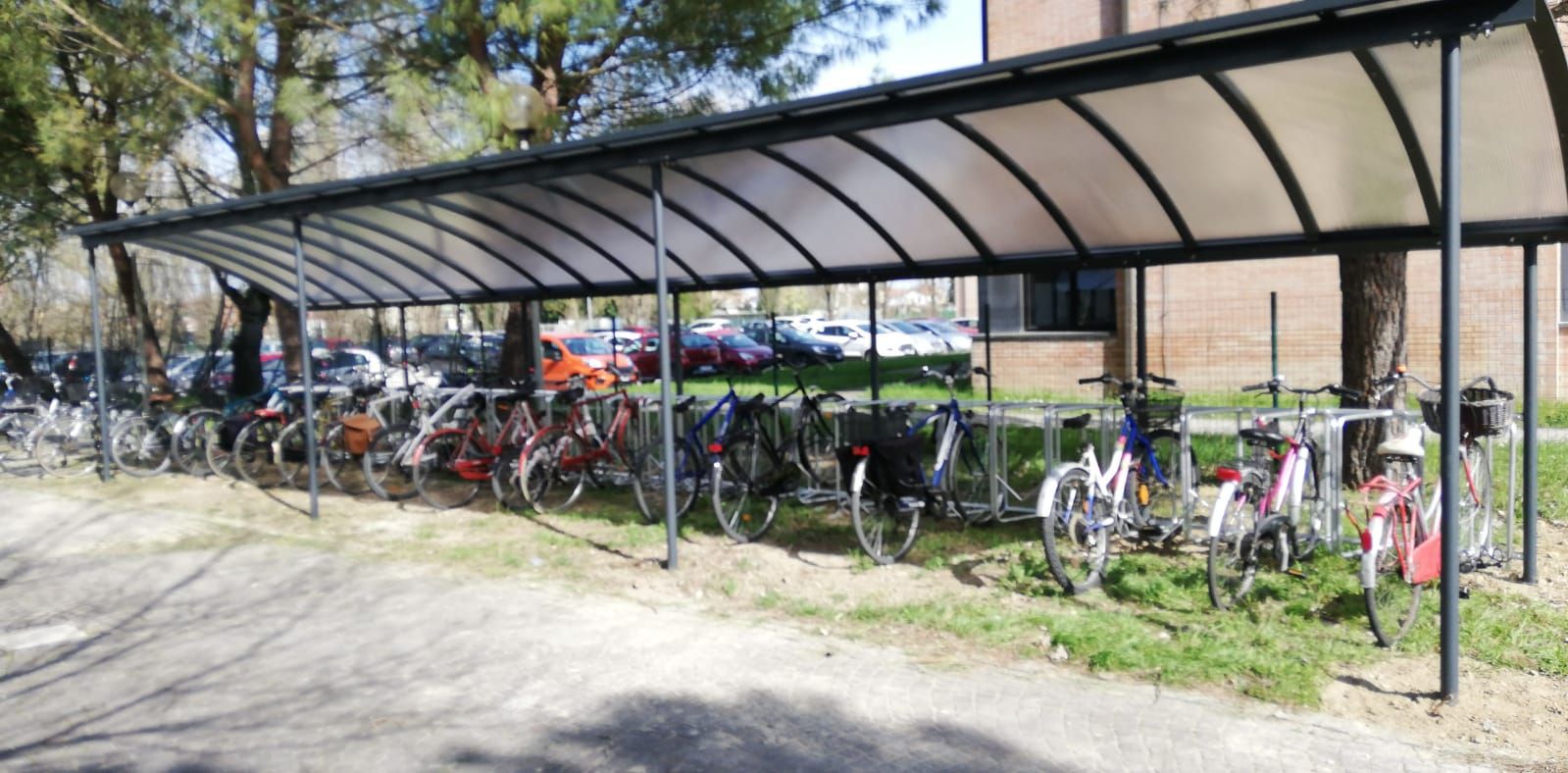

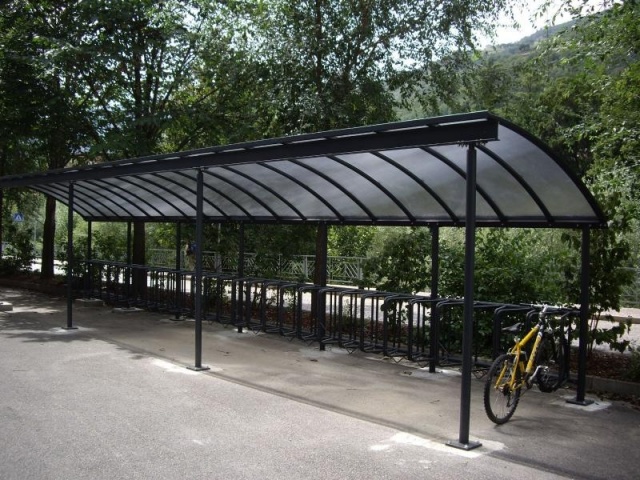

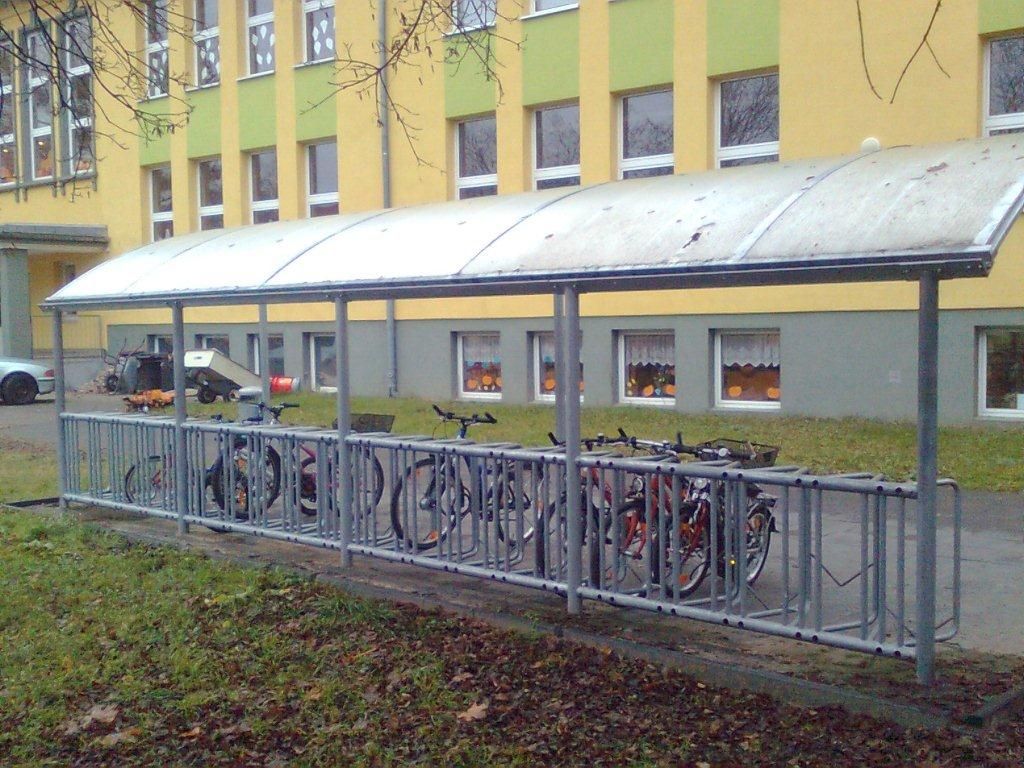

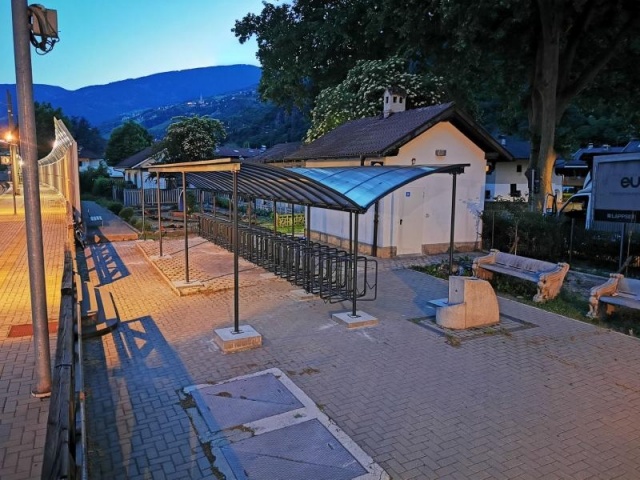

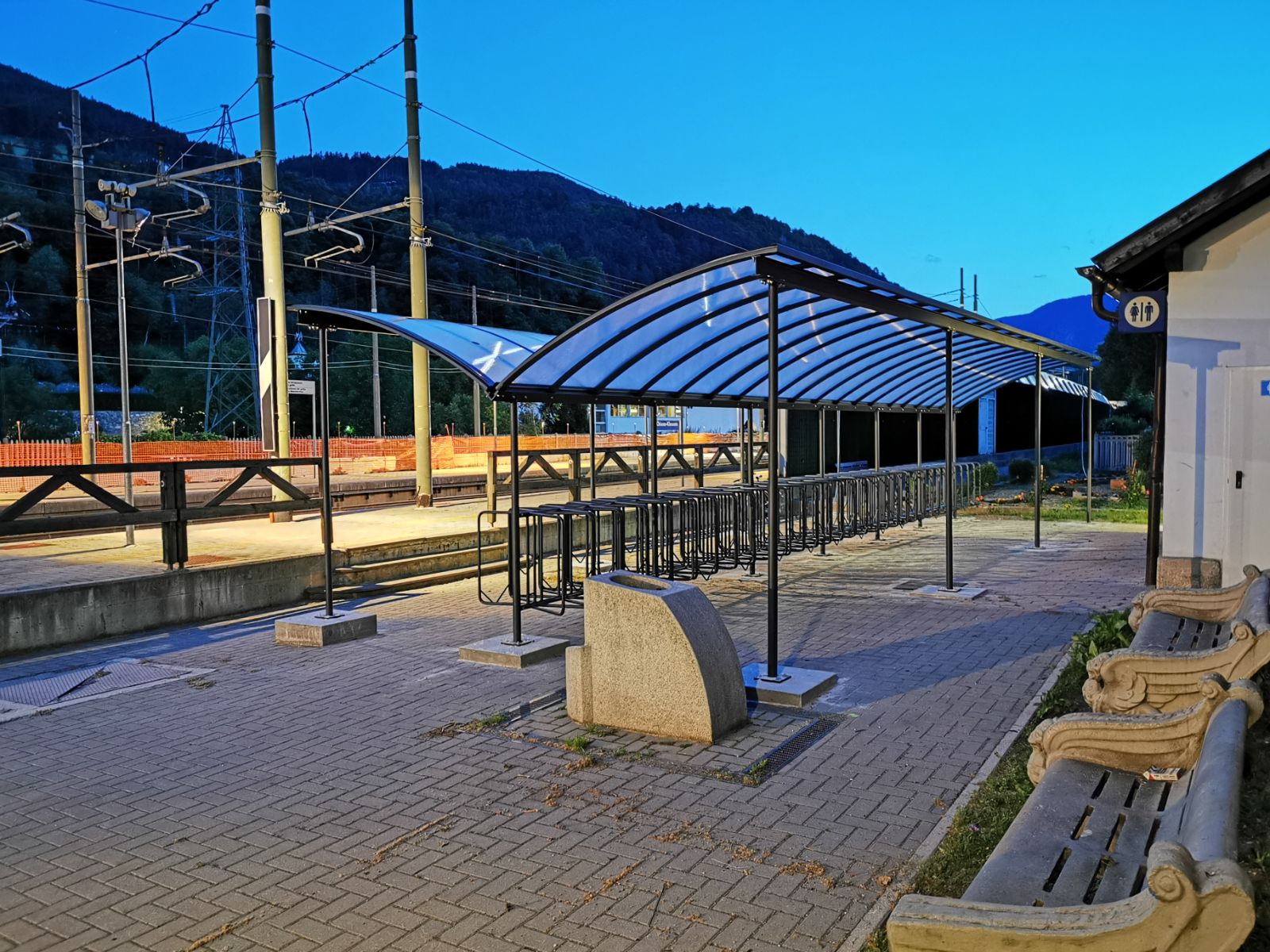

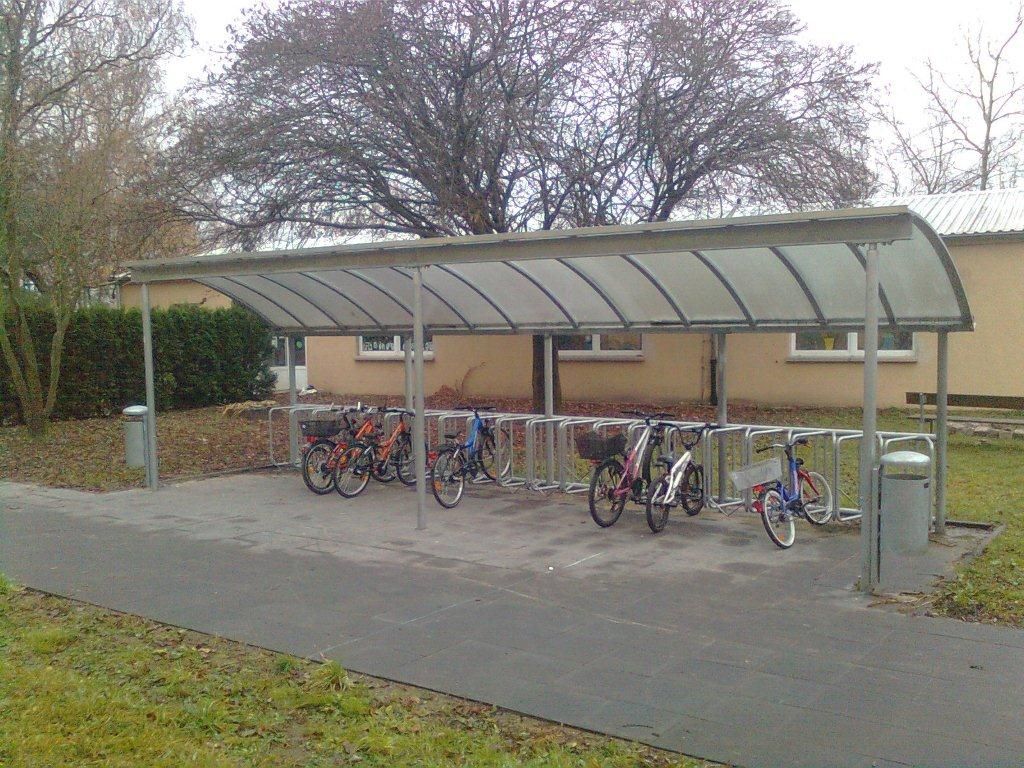

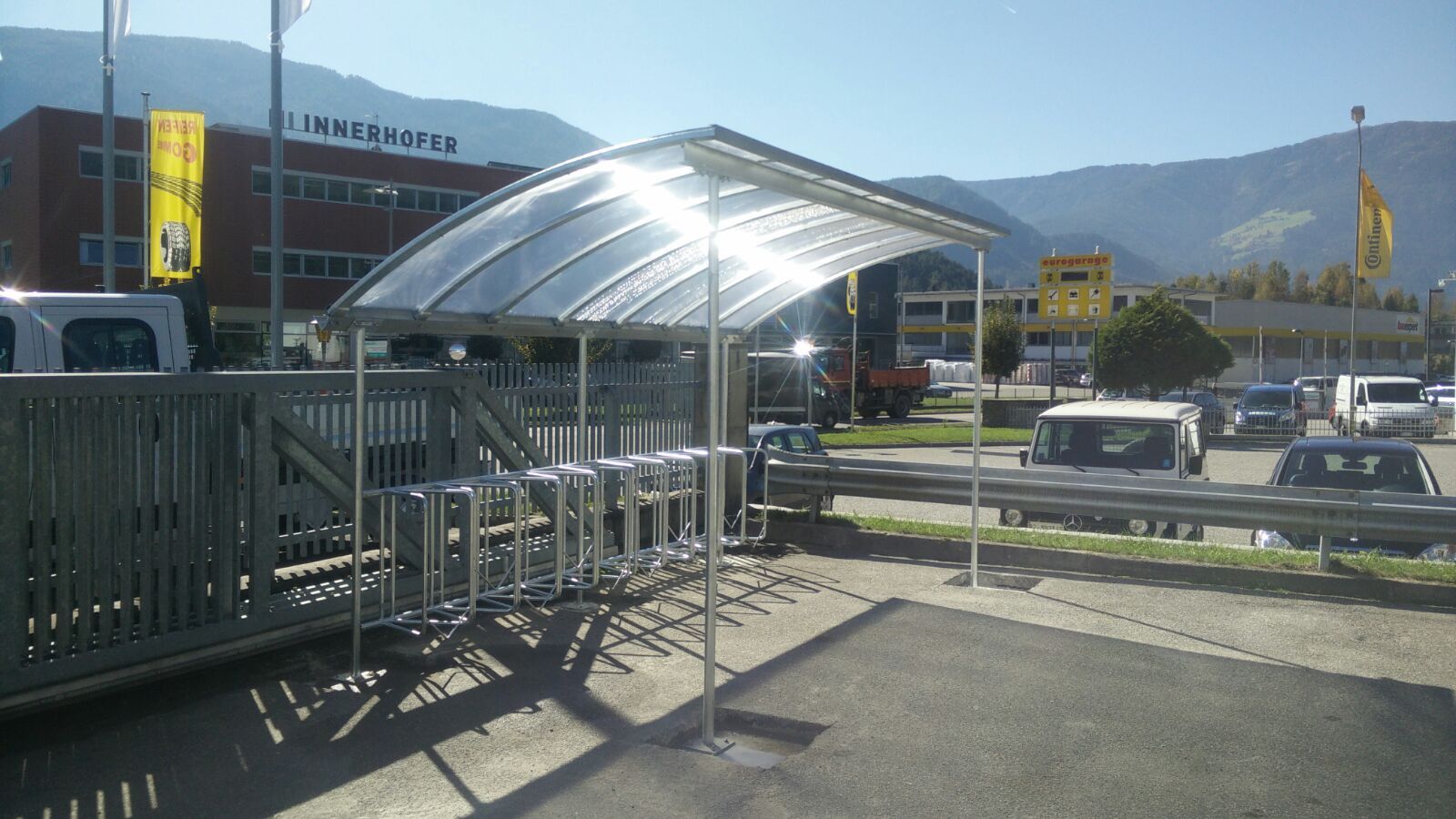

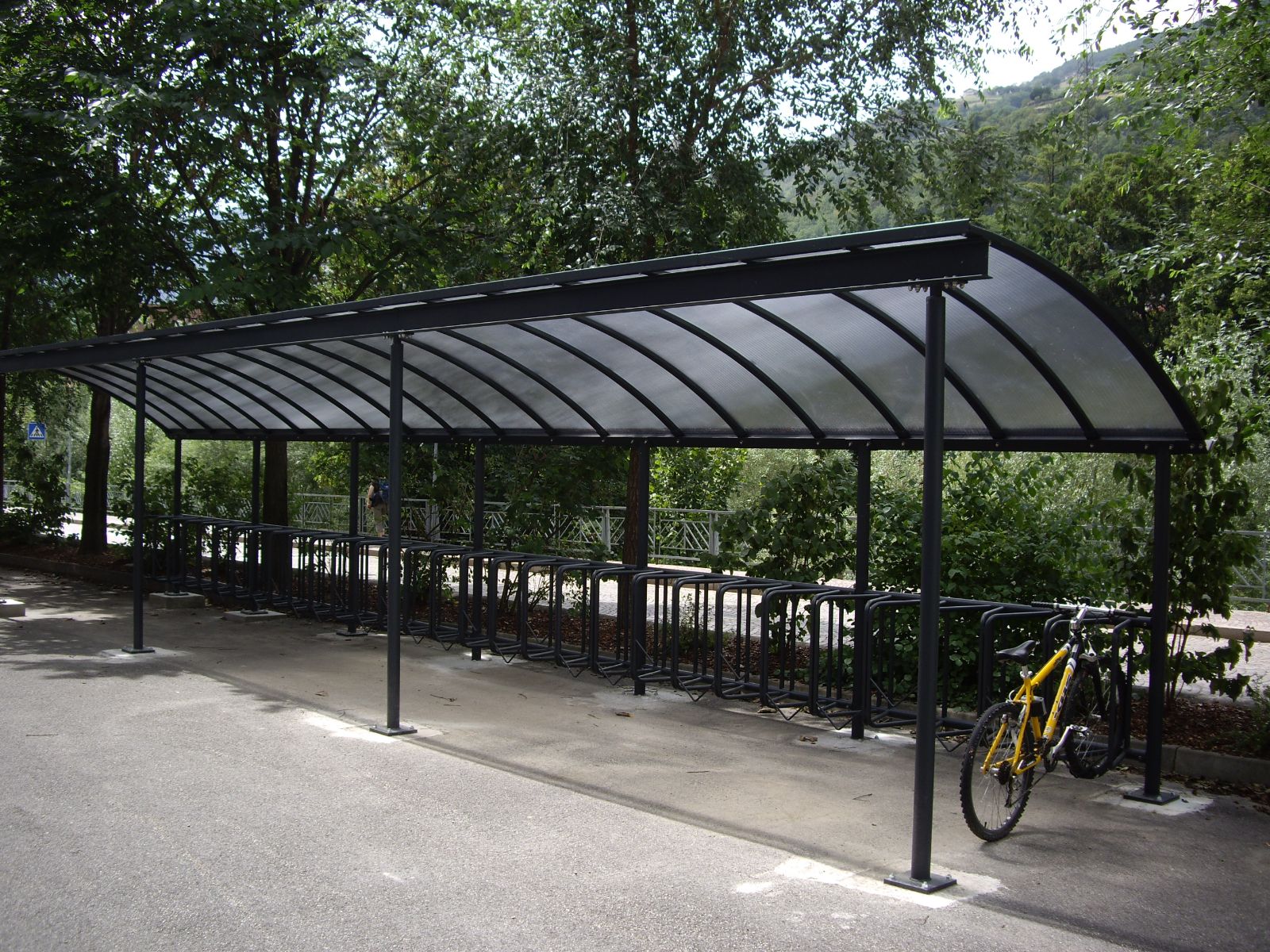

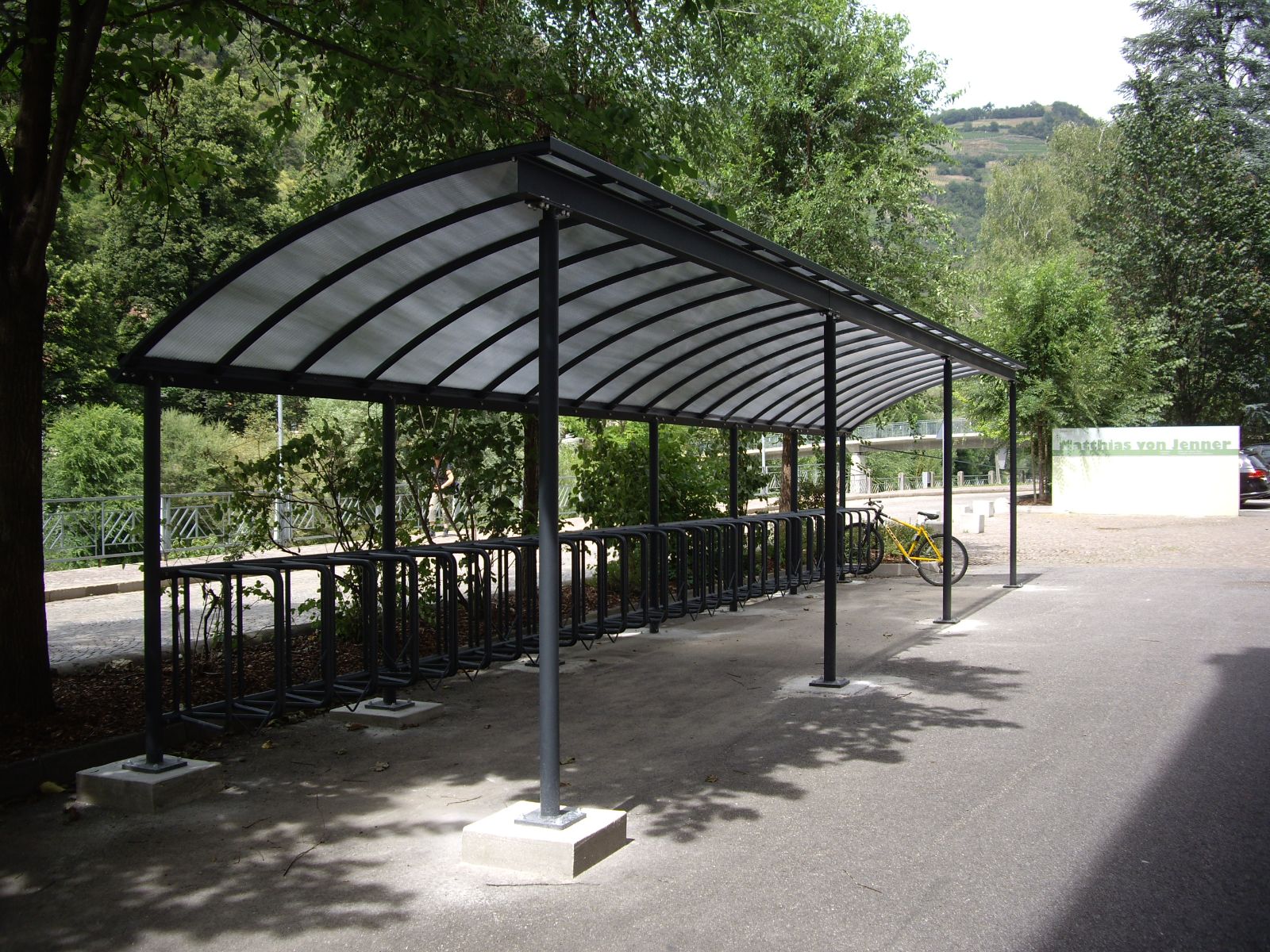

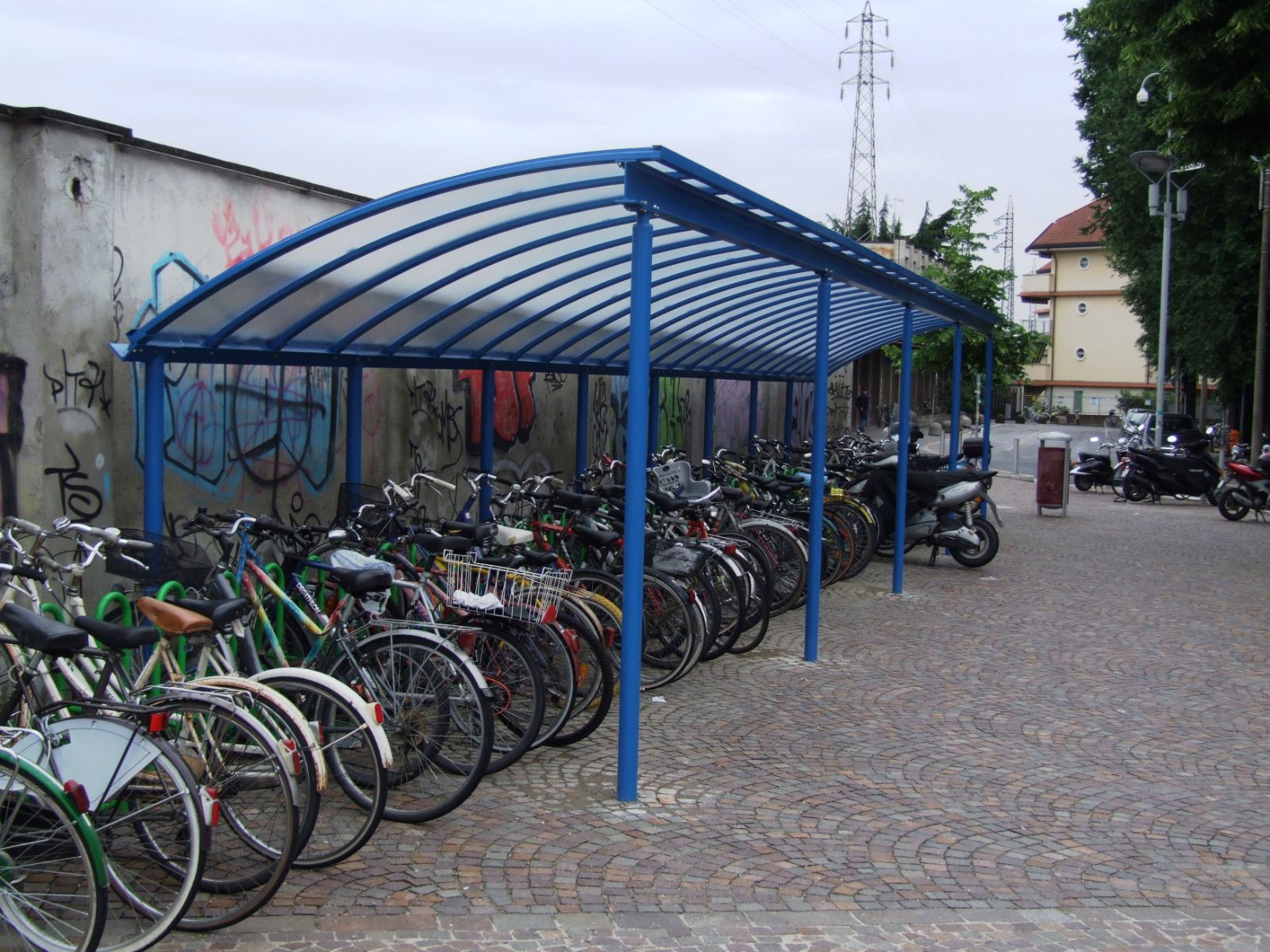

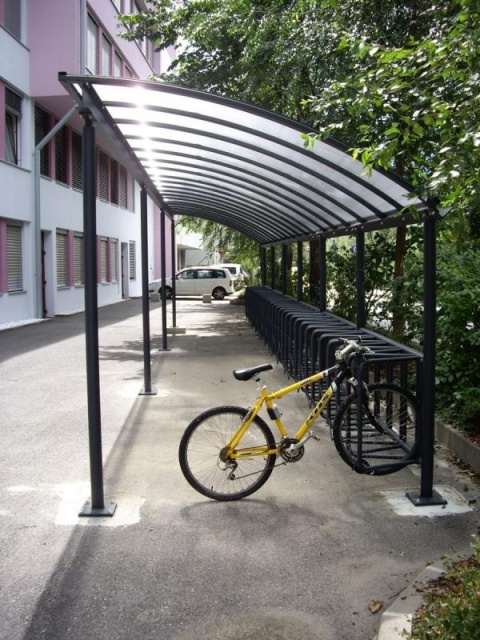

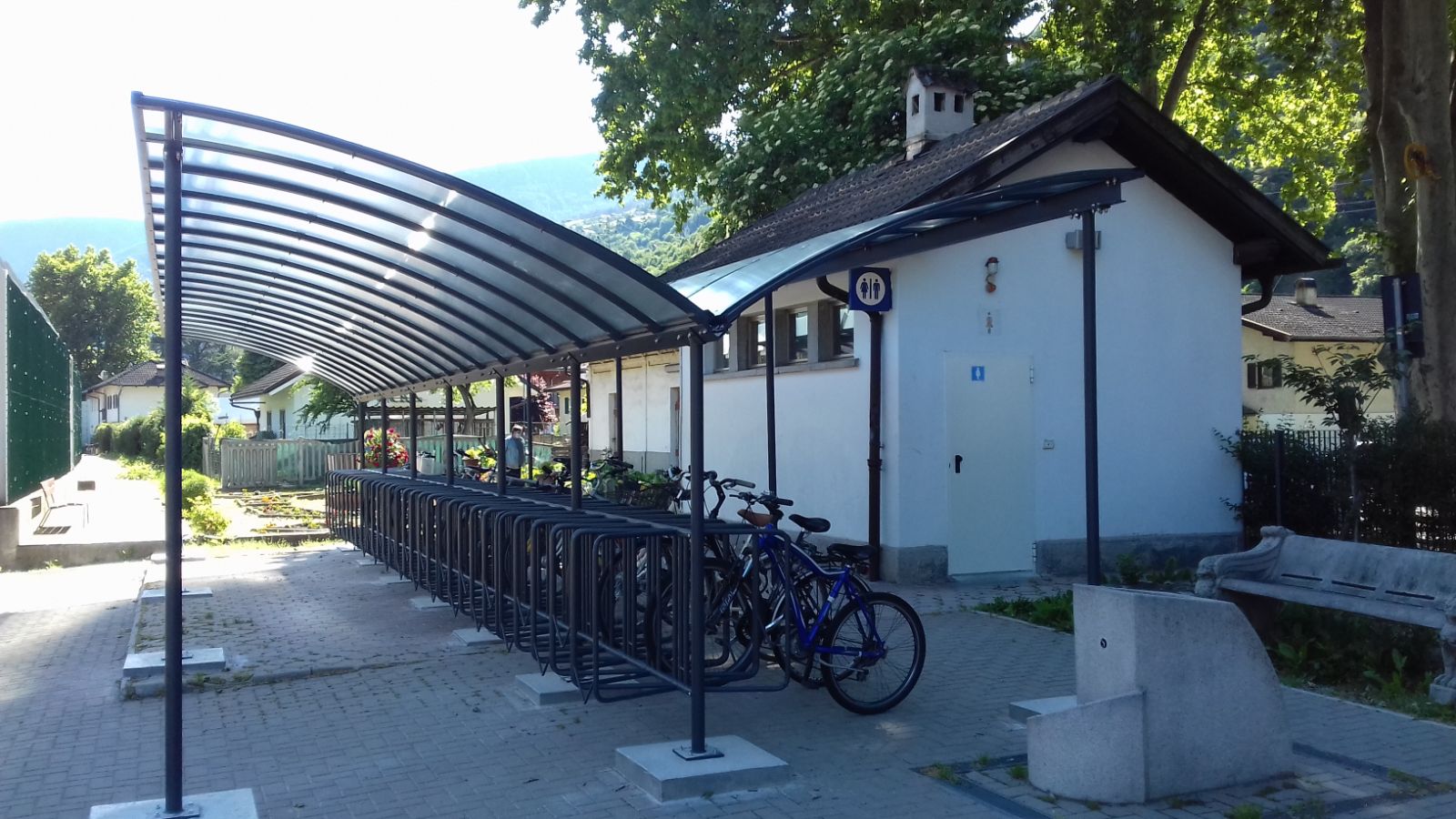

Wing Bike shelter

Name: Bike shelter Wingbike
Designer: Arch. Thomas Winkler

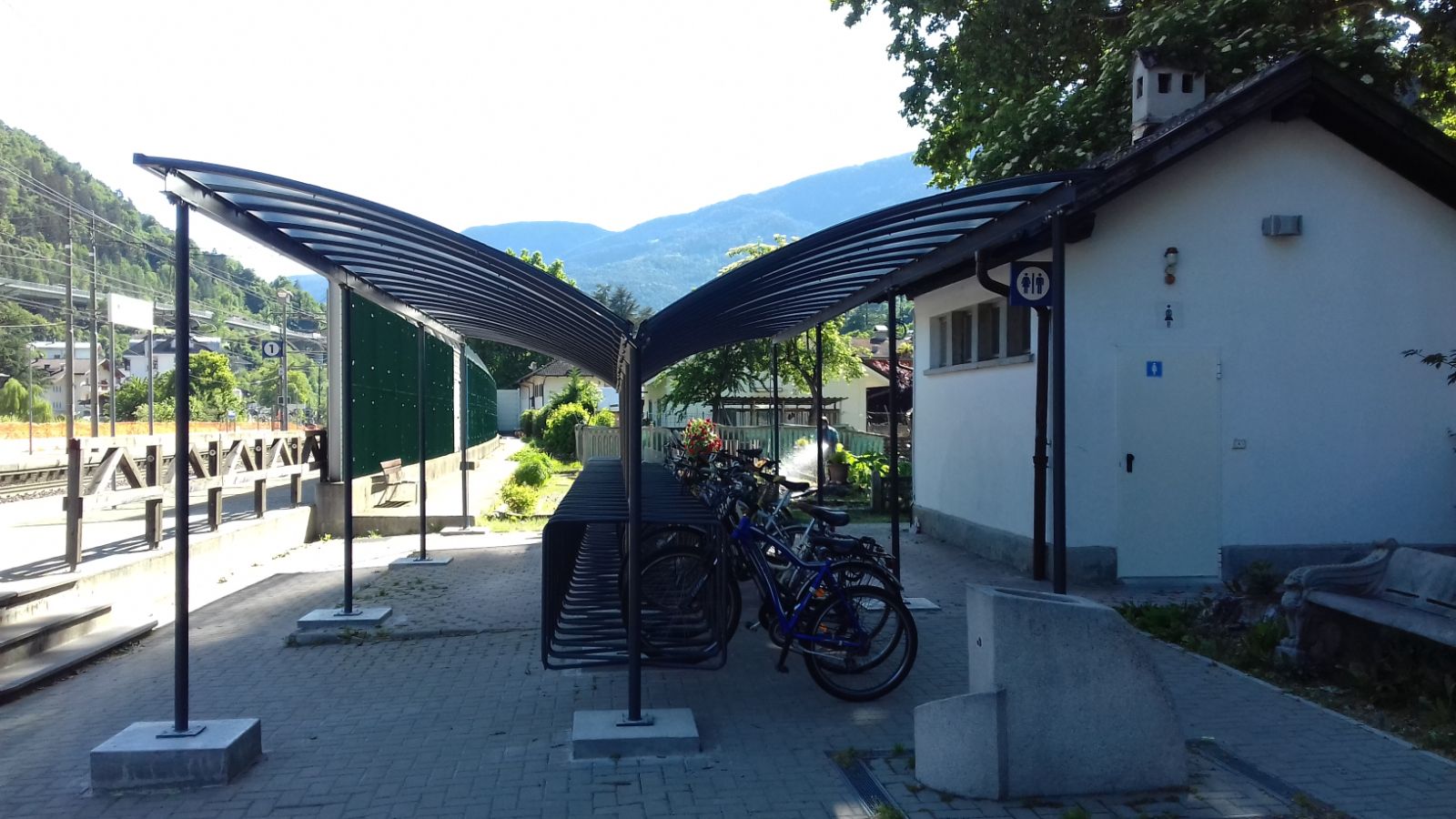

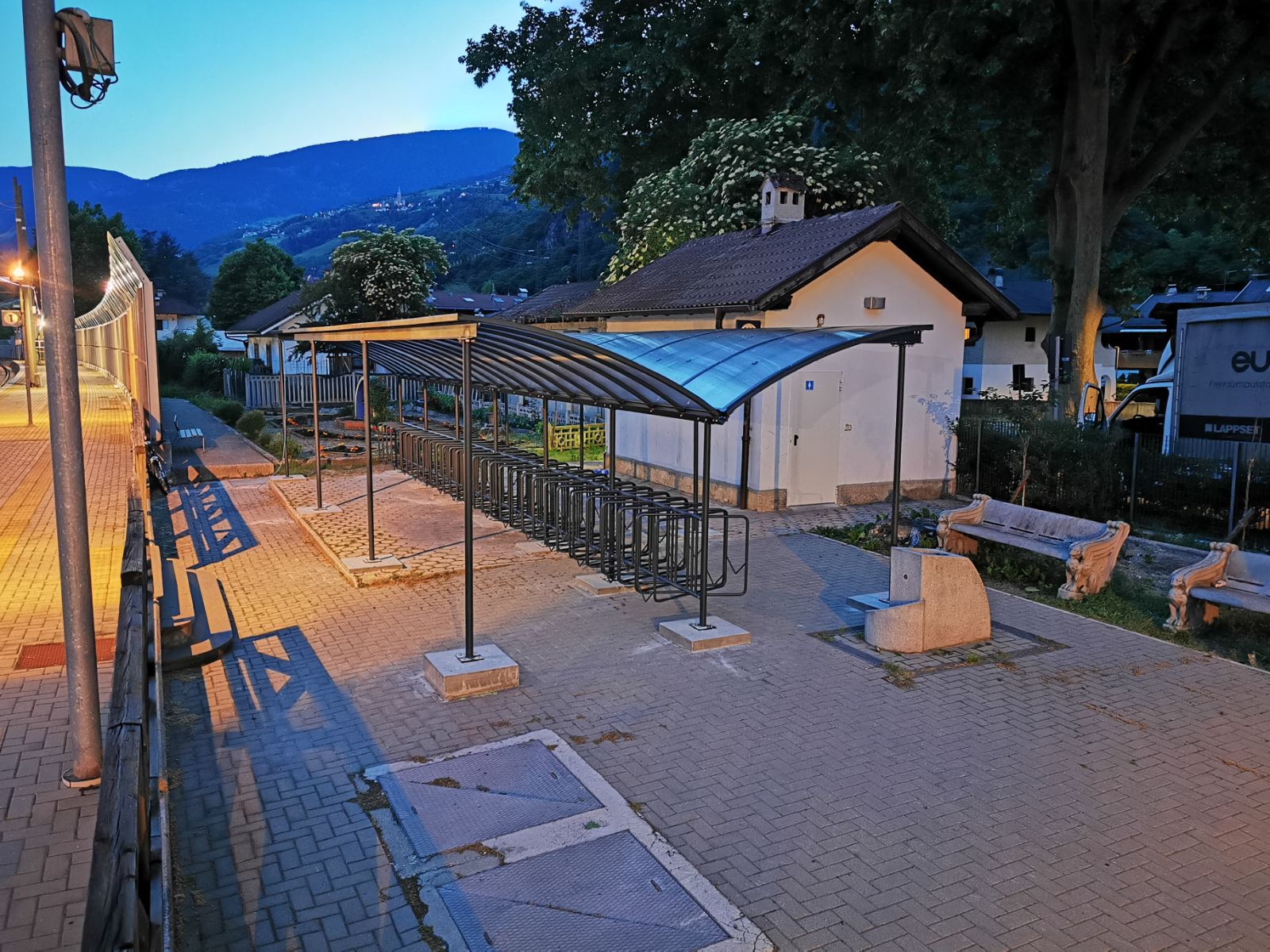

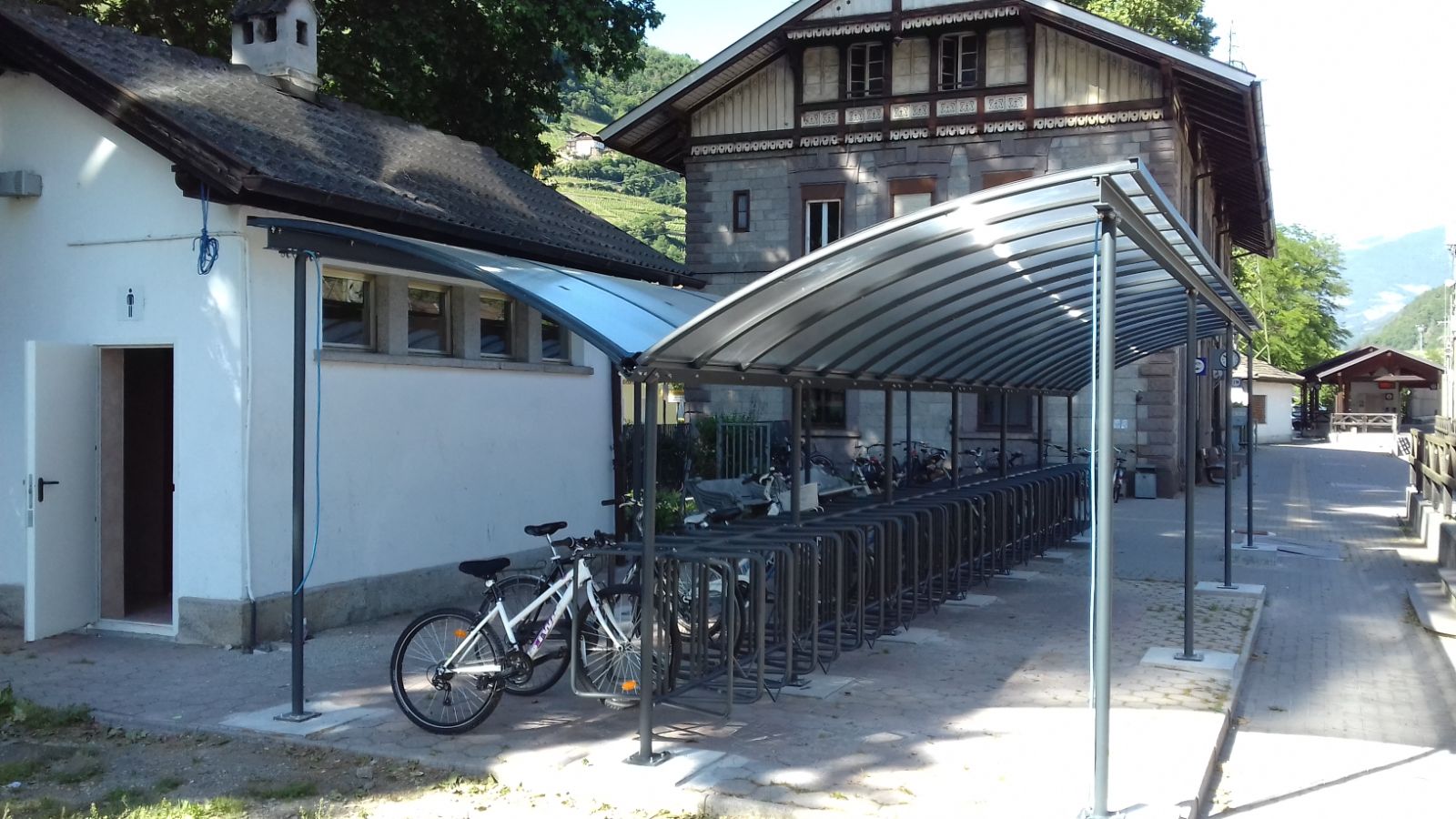

Version: single- or double side
Material: metal, hot dip galvanized
Structure: posts in round section pipe Ø50mm; beams IPE 100mm; rectangular section pipe 60x30mm; "L" section 100x100mm
Powder coating: RAL color to choose
Roof: Makrolon polycarbonate 16mm
Fixation: fixed in the ground, surface mounting
Snow charge: 150kg/m2
